Features
Environmentally Stable.
Easy Installation.
Low insertion Loss.
High uniformity.
High reliability.
Application
Network protection
Monitoring
Access/PON distribution
CATV
FTTH

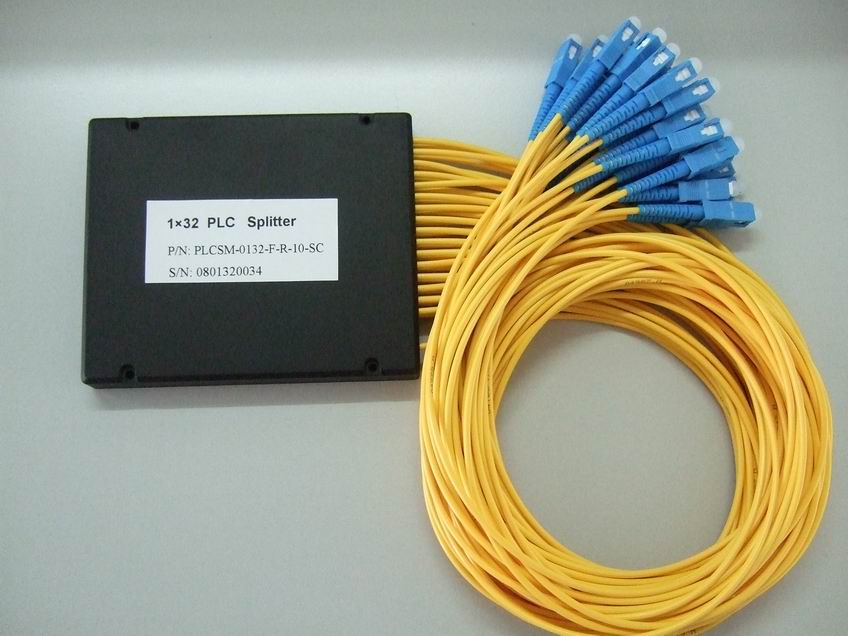

 Ordering information for Planar splitter (PLC splitter)

Port 12=1×2,14=1×4,18=1×8,116=1×16,132=1×32,164=1×64, 24=2×4,28=2×8,216=2×16,232=2×32
Fiber Type D=G652D, A=G 657A
Package S=Steel tube; A=ABS box
Input Fiber Type L=900µm Loose tube, S=2.0mm, R=3.0mm, B=250µm Ribbon Fiber, 0=Adapter
Output Fiber Type L=900µm Loose tube, S=2.0mm, R=3.0mm, B=250µm Ribbon Fiber, 0=Adapter
Pigtail Length 05–20=0.5–2.0m, A=Adapter, X=Others
Connector Type FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC,ST=ST/UPC, LU=LC/UPC, LA=LC/APC,N=None, X=Others

Performance Specifications of Planar splitter (PLC splitter)

PLC splitter Unit Parameter
Operating Wavelength nm 1260~1650
Typ.Insertion Loss dB 16.8
Max.Insertion Loss dB 17.2
Max.Uniformity dB 1.7
Max.TDL dB 0.5
Max.PDL dB 0.3
Min.Return Loss dB 50
Min.Directivity dB 50
Operating Temperature °C -40~+85
Storage Temperature °C -40~+85
Package Dimensions(L×W×H) mm 50×7×4
