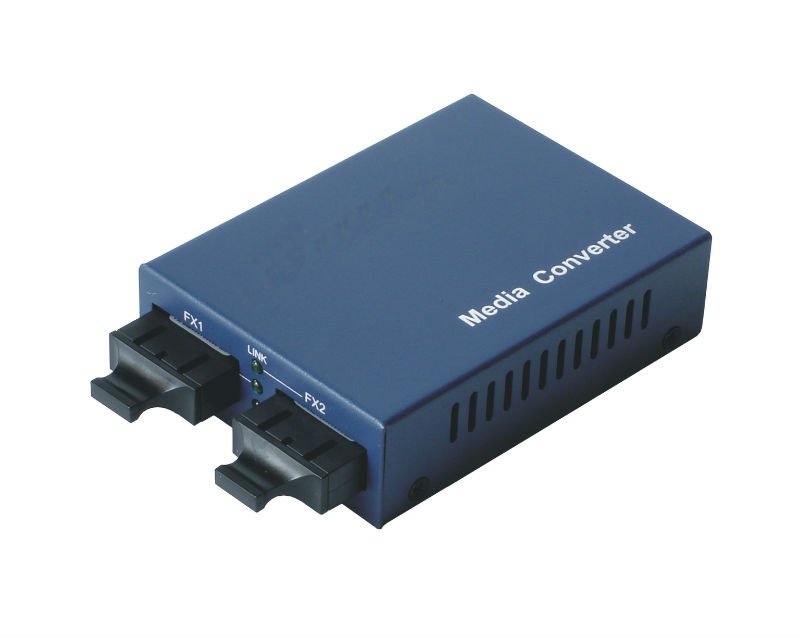

100/1000m SM/MM Media Converter

1:Fiber connector: multimode ST/SC, single mode SC/ST/FC

SM/MM Media Converter:

Technical specifications:

1) Fiber connector: Multimode ST/SC , Singlemode SC/ST/FC

2) Transmission Rate: CF01XX: 2~155Mbps

CG01XX: 100~1250Mbps

3) Optical fiber: Multimode: 50/125, 62.5/125um

Singlemode: 8/125, 7/125, 9/125, 10/125um

4) Power: External or Internal switching power: AC100~240V/DC 5V

5) Ambient temperature: 0~50°C

6) Storage temperature: -20°C~70°C

7)Relative humidity: 5~90%

Features

1)The conversion of optical signals can be carried out between multi/multimode optical fiber,

between single/multimode fiber, or between single/single mode fiber

2) Supporting conversion of 2~155Mbps or 100~1250Mbps Optical digital signals

Fiber Optic Information

Connector	Fiber type	WavelenJLDh	Max. distance	TX power	Sensitivity	Link Budget
ST/SC	multimode	850/1310nm	2km	-20~-12dBm	-30dBm	10dBm
SC	singlemode	1310nm	25km	-14~-8dBm	-32dBm	18dBm
SC	singlemode	1310nm	40km	-8~-3dBm	-33dBm	25dBm
SC	singlemode	1310nm	60km	-3~0dBm	-36dBm	33dBm
SC	singlemode	1550nm	80km	-10~-5dBm	-35dBm	25dBm
SC	singlemode	1550nm	100km	-5~0dBm	-36dBm	31dBm
SC	singlemode	1550nm	100km	0~3dBm	-36dBm	36dBm

Order Information

Product description

10/100M multimode Media Converter, the max optical fiber distance up to 2 or 5 km.

10/100M singlemode Media Converter, max fiber distance from 20 to 120 km, xx for the amount of distance.

10/100M singlemode single-fiber Converter, max fiber distance from 20 to 100 km, xx for the amount of distance
