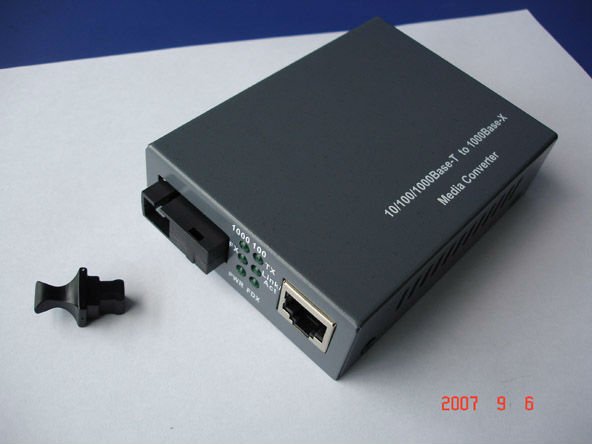

Gigabit Fiber Media Converter can convert Optical-Electric Ethernet signals between 10/100/1000M UTP interface (T) and 1000M optical fiber interface (X). The traditional 10/100/1000M gigabit Ethernet can be extended to the distance of 100km through optical fiber link. The performance and quality of the products are excellent because of adopting latest Gigabit IC from USA. 6 Group LED indicated lights could fully monitor the working conditions of converters. Because of this, it is easy for users to observe and diagnose the failure of converters. Gigabit Converters could be used individual, or inserted to 14 slots RACK; but Converter Card should be inserted to 16 slots RACK which is suitable for the use of Network Centre.

single-mode media converter may be used double optical fiber-module or single optical fiber-module which must be used in couples.

SFP has two ports, one is the 1000M SFP socket, the other is the UTP port. The SFP socket can be used various 1000M SFP optical fiber-module (1000Base-T, 1000Base-SX, 1000Base-LX) according to the customers’ requirement.

Main features

1.Auto negotiation function allows UTP ports to auto 10/100/1000M and Full Duplex/Half Duplex.

2.The UTP port supports auto MDI-MDIX.

3.Multimode Fiber: the max distance up to 224m/ 550m

Singlemode Fiber: the max distance up to 100km

4.Supports the max 1536 byte Ethernet packet

5.Supports flow control

6.Small power consumption, less heat, small size

Technical Specifications

1.Operating standards: IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX

2.MAC address table: 1K

3.Data Buffer: 512Kb

4.Bandwidth: 12G, can be transmitted to achieve non-blocking wire-speed

5.Connector: UTP: RJ-45,10/100/1000Mbps;  Fiber: SC/LC 1000Mbps

6.Cable : UTP cable: Cat 5e or Cat 6 (the max distance up to 100m)

Fiber : multimode : 50/125, 62.5/125μm (the max distance up to 550/224m)

singlemode : 8/125, 8.7/125, 9/125μm (the max distance up to 100km)

1.Flow control:Full Duplex: IEEE802.3x:Half Duplex: back pressure.

2.LED:PWR ,FX Link/Act,TP FDX,TP Link/Act,TP 100,TP 1000

3.Power:  AC 220V(100-240V) 50~60Hz;  DC 5V,2A

4.Ambient temperature:0 ~ +50°C

5.Storage temperature:-20 ~ +70°C

6.Humidity:5% ~ 90%

7.Dimensions:26 (high) × 70 (width) × 93 (length) mm
